معرفی :

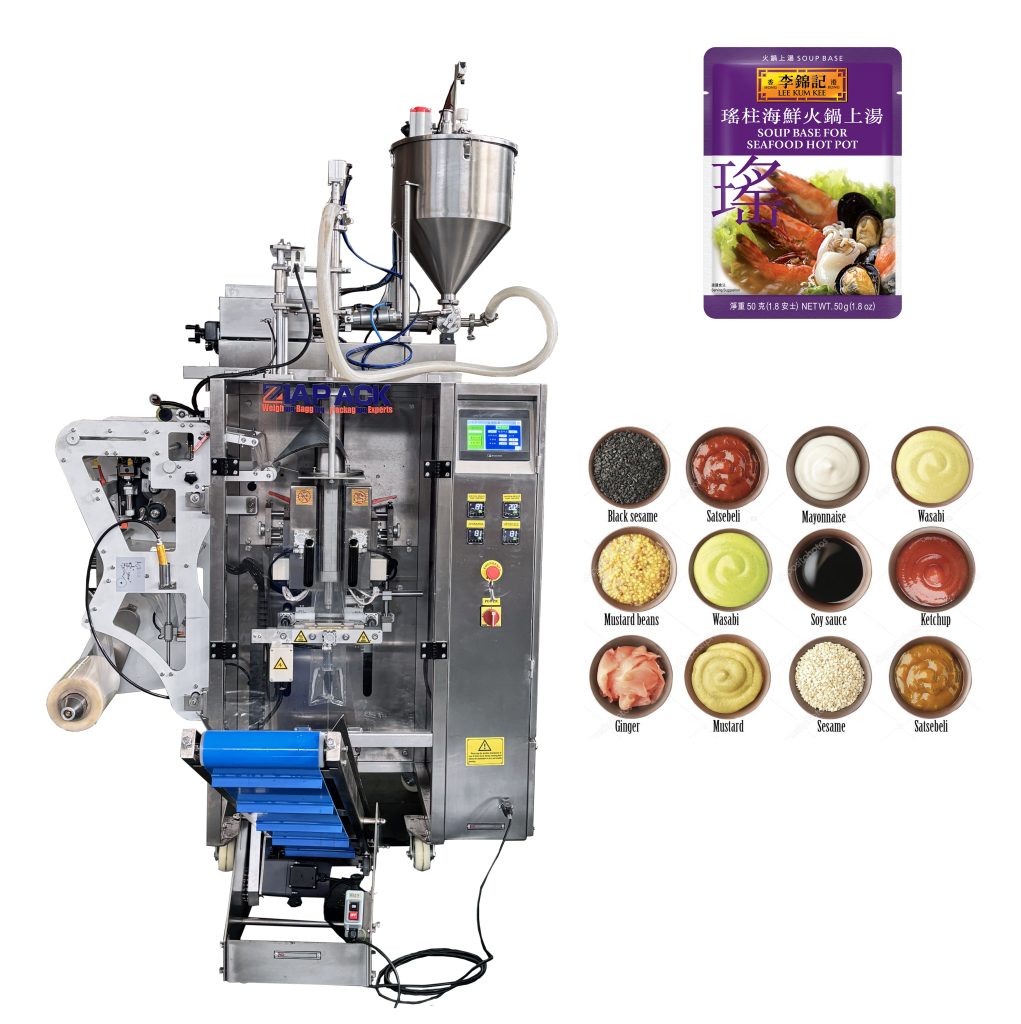

This machine unit is including one set ZL320 vertical bag forming filling sealing machine, one set piston pump and one set output elevator.The whole machine unit can reach automatic bag making ,product filling sealing and date coding .Widely used for packing liqid product .

امکانات:
- Attractive bag type to satisfy your high demand.
- It completes bagging, sealing, date printing, punching, counting automatically;
- Film drawing down system controlled by servo motor. Automatic film rectifying deviation function;
- Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
Easy to operate, low maintenance, compatible with different internal or external measuring device.
- Suitable to packing granule, powder, such as tee,milk powder, rice flour, coffee, snacks, nuts, potato chips, etc.
- The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
Main machine electric parts:
| نام | نام تجاری |
| Touch-sensitive screen | WEINVIEW |
| Programmer controlled system | SIMENS |
| Servo motor | SIMENS |
| Servo driver | اسنایدر |
| سیلندر | FESTO |
| Electromagnetic valve | SMC/Airtac |
| رله متوسط | OMRON/SCHNEIDER |
| Photoelectric eye | SICK |
| قدرت | ZHANGXIN |
| Solid state relay | دلتا |
| Thermometer control | OMRON |
Parameters:
| موارد | محتوا |
| ظرفیت | 20-50bag/min (For 300g sauce,the speed is around 15 bags/minute) |
| اندازه کیسه | (L) 50-200mm (W) 60-150mm |
| نوع کیسه | 3-side-seal,4-side-seal |
| عرض فیلم | Max 360mm |
| ضخامت فیلم | 0.04-0.09 میلیمتر |
| مصرف هوا | 0.8Mpa 0.5m3/min |
| قدرت اصلی / ولتاژ | 3KW/380V 50Hz |
| بعد، ابعاد، اندازه | L1140*W1460*H1470mm |
| وزن سوئیچینگ | 700 کیلوگرم |
